Aluminum Tri-Bracket for Solar Panels

Model: Project-specific

  • Load Capacity: Withstands wind speeds up to 60m/s and snow loads of 1.4KN/m², suitable for harsh climates
  • Surface Treatment: Anodized silver finish enhances corrosion resistance and maintains a sleek appearance
  • Warranty: Backed by a 10-year warranty, ensuring reliability for commercial and residential solar systems
  • Q1: Which angles and sizes can I choose?
Request a Quote

Categories: Solar Accessories

50*50*4 Angle aluminum tribracket Wanhos Angle Aluminum Tribracket Series (50×50×4) is engineered to deliver precision support for flat-roof solar installations, merging customizable tilt optimization, structural toughness, and low-maintenance durability into a single solution.

Aluminum solar tribracket by Wanhos, built with AL6005-T5 aluminum and anodized finish. Engineered for flat roof PV systems, resisting corrosion, wind (60m/s), and snow loads (1.4KN/m²).

50*50*4 Angle aluminum tribracket

Wanhos Angle Aluminum Tribracket Series (50×50×4) is engineered to deliver precision support for flat-roof solar installations, merging customizable tilt optimization, structural toughness, and low-maintenance durability into a single solution.

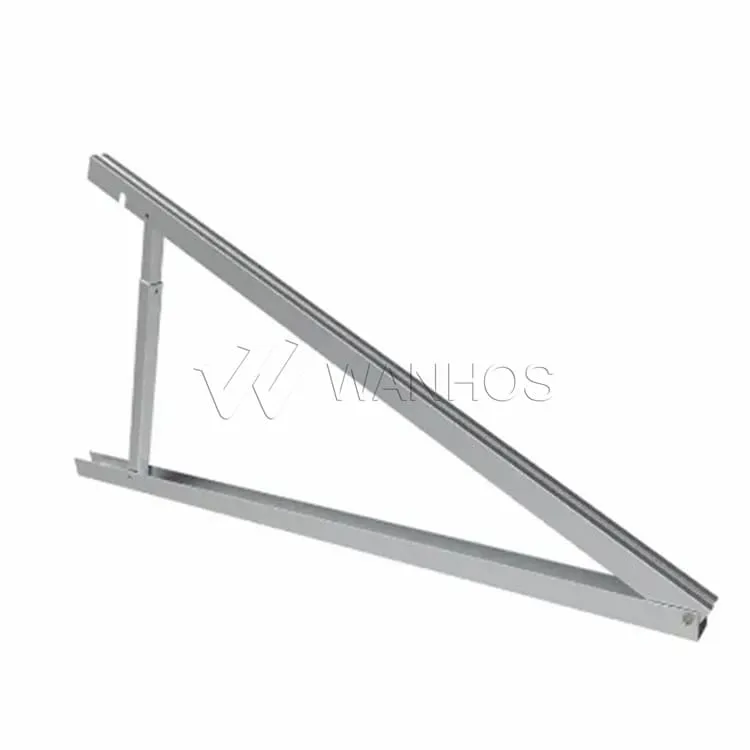

Triangular solar mounting tribracket from Wanhos, designed for flat roof installations. Features AL6005-T5 aluminum construction and durable anodized coating for solar panel support.

Product Features

  • Angle & Size Options: Available in 15°, 20°, and 30° angles, with two size series: L Series (Large): Dimensions like 1380×1335×405 (15°), 1380×1335×505 (20°), 1380×1335×705 (30°). M Series (Medium): Dimensions like 850×775×250 (15°), 850×775×310 (20°), 850×775×440 (30°).
  • Load Capacity: Withstands wind speeds up to 60m/s and snow loads of 1.4KN/m², suitable for harsh climates.
  • Surface Treatment: Anodized silver finish enhances corrosion resistance and maintains a sleek appearance.
  • Warranty: Backed by a 10-year warranty, ensuring reliability for commercial and residential solar systems.

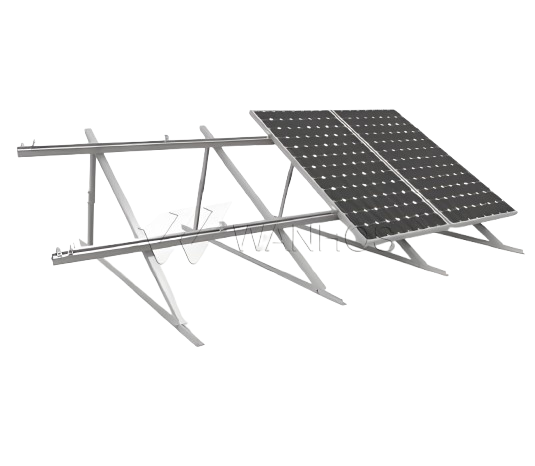

Wanhos aluminum tribracket for flat roof solar arrays. Combines triangular structural strength, AL6005-T5 material, and anodization for long-lasting, low-maintenance performance.

FAQ

  • Q1: Which angles and sizes can I choose?
  • A1: Angles: 15°, 20°, 30°. Sizes: L Series: Larger dimensions for heavy-duty applications (weight: 3.6–3.9 Kgs). M Series: Compact dimensions for space-efficient installs (weight: 2.27–2.47 Kgs).
  • Q2: What is the warranty period?
  • A2: Wanhos offers a 10-year warranty against manufacturing defects and performance issues.
  • Q3: Are they easy to install?
  • A3: Yes! The design prioritizes simplicity, with clear instructions and compatible SUS304 hardware for quick assembly.

Product series

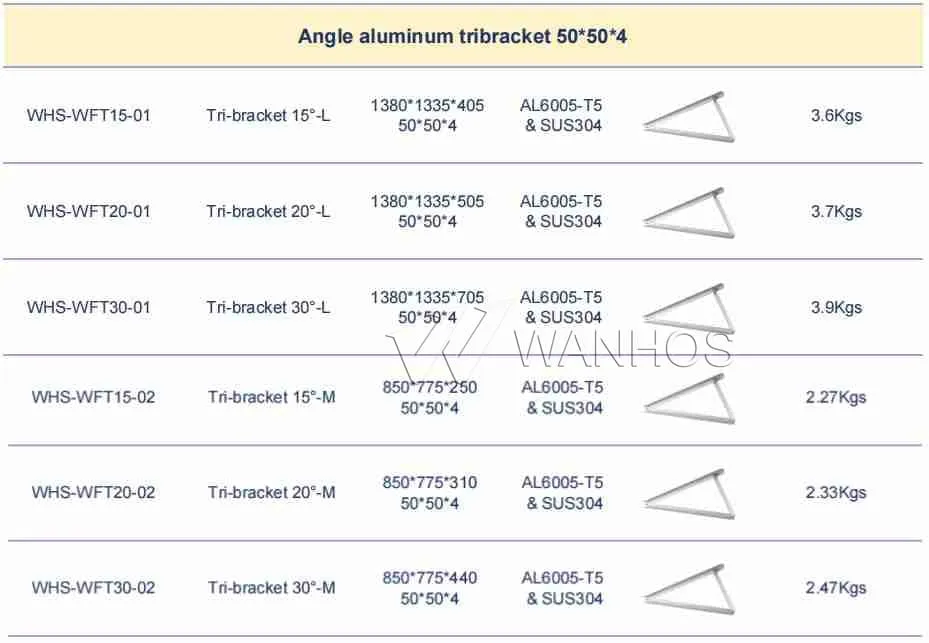

Datasheet of Wanhos Angle Aluminum Tribracket 50*50*4 series, listing 6 models: 15°/20°/30° angles in Large (L) and Medium (M) sizes. Includes dimensions (e.g., 1380*1335*405 for 15°-L, 850*775*250 for 15°-M), material (AL6005-T5 & SUS304), and weight (3.6Kgs–2.47Kgs).

Information needed for a quotation

Confirm the related mounting profile or component dimensions, module frame details, required quantity, material or finish, and project location.

Frequently asked questions

Can aluminum tri-bracket for solar panels be customised?

Configuration, dimensions, materials and supplied components can be reviewed against the application and engineering requirements. Share the project inputs so compatibility can be confirmed before ordering.

What documents are available for a project?

Depending on the order scope, Wanhos can provide product data, a coordinated bill of materials, drawings, packing information and installation guidance.
