Angled Solar Panel Mounts Wind Load: ≤ 60 m/sSnow Load: 1.4KN/M²Service life: ≥ 25 YearsWarranty: 20 Years (Q235 or Q355); 12 Years (AL6005-T5)Tile Angle: 10-30°Building Height: ≤20m
Wind Load: ≤ 60 m/s Snow Load: 1.4KN/M² Service life: ≥ 25 Years Warranty: 20 Years (Q235 or Q355); 12 Years (AL6005-T5) Tile Angle: 10-30° Building Height: ≤20m
Angled Solar Panel Mounts can be adapted to the geographic location of the solar installation. The optimal tilt angle varies depending on the latitude of the installation location, and these mounts allow for flexibility in setting the angle according to local solar conditions. Angled solar panel mounts play a vital role in optimizing the performance of solar systems. Their adjustable tilt mechanism, versatility, and weather-resistant design help to increase energy harvesting, improve ROI, and adapt to different geographic locations, making them an essential part of deploying efficient and effective solar installations.
Technical Parameters

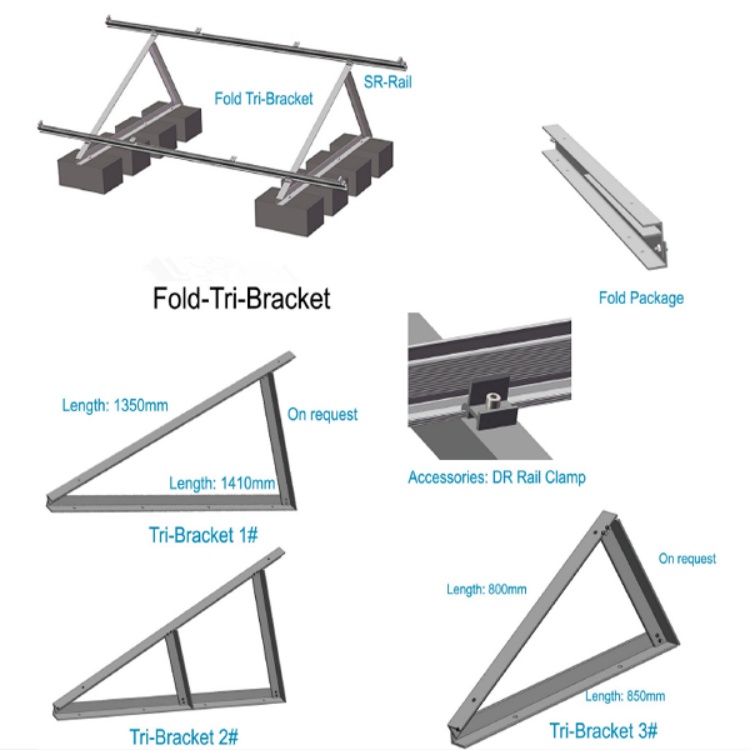

Detail Show

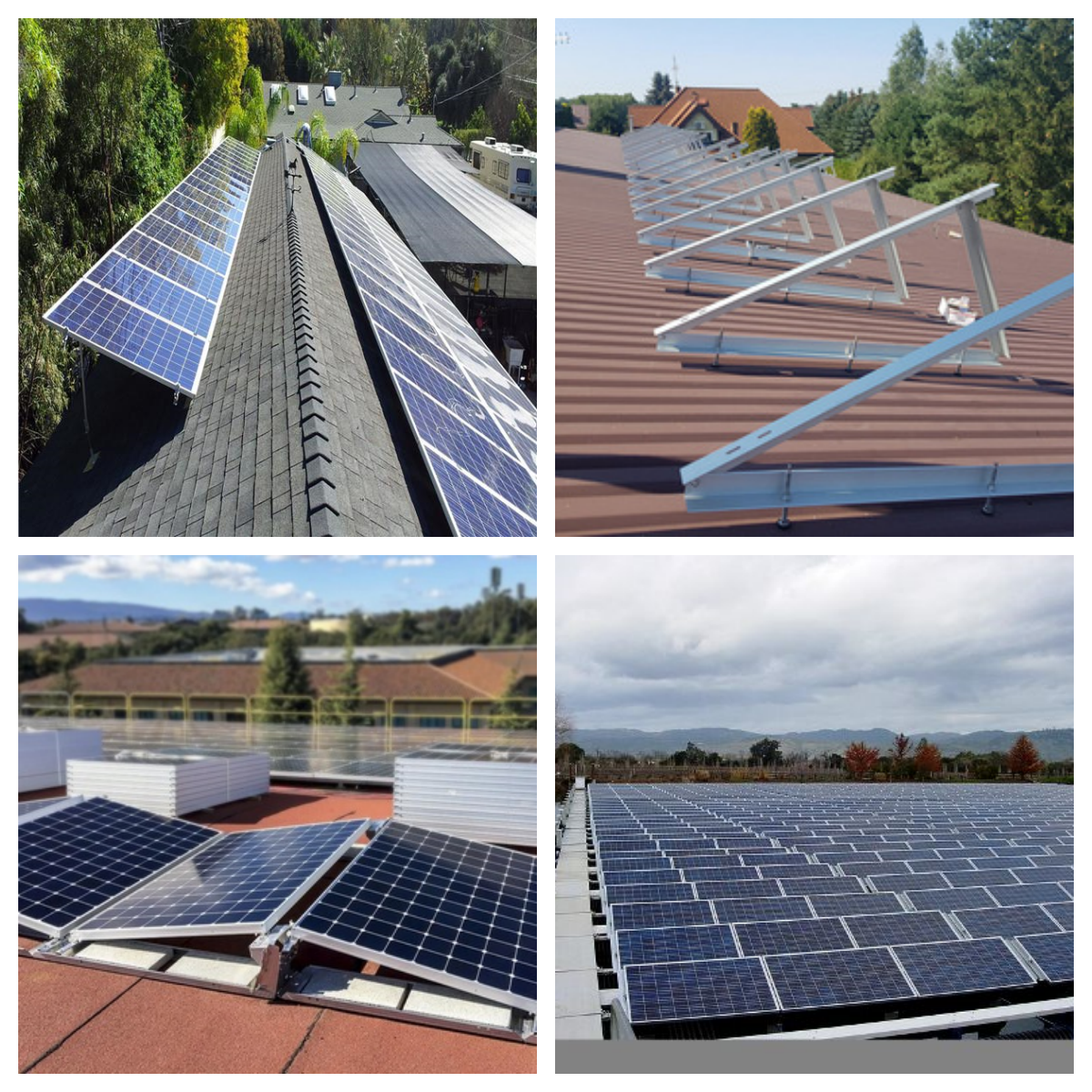

Project Reference
Application and compatibility
Select the component against the complete mounting assembly, not the product name alone. Check the mating rail or profile, module frame, hole pattern, fastener size, edge distances and required adjustment range. Material grade and surface treatment should also match the site environment and expected service conditions.
Supply and quality checks
Before production, confirm the approved drawing, quantities, material specification, finish and packaging requirements. Incoming materials, dimensions and assembly interfaces should be checked against the agreed specification. For project orders, sample approval or a compatibility review can help reduce site changes and ensure that the delivered components match the intended installation sequence.
Information needed for a quotation
Confirm the related mounting profile or component dimensions, module frame details, required quantity, material or finish, and project location.
Frequently asked questions
Can angled solar panel mounts be customised?
Configuration, dimensions, materials and supplied components can be reviewed against the application and engineering requirements. Share the project inputs so compatibility can be confirmed before ordering.
What documents are available for a project?
Depending on the order scope, Wanhos can provide product data, a coordinated bill of materials, drawings, packing information and installation guidance.
