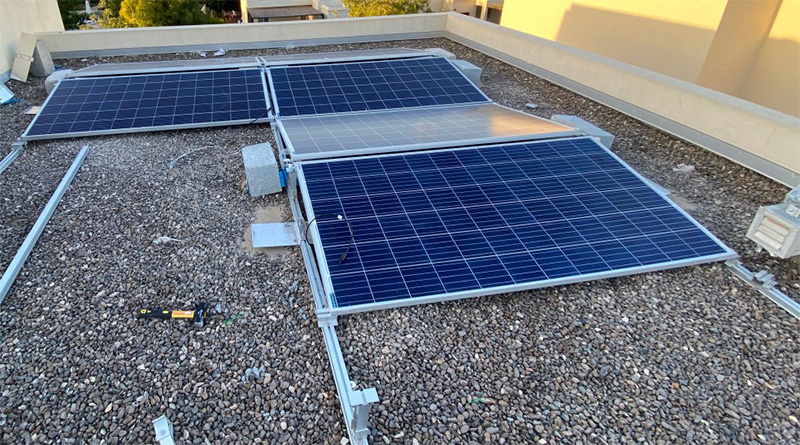

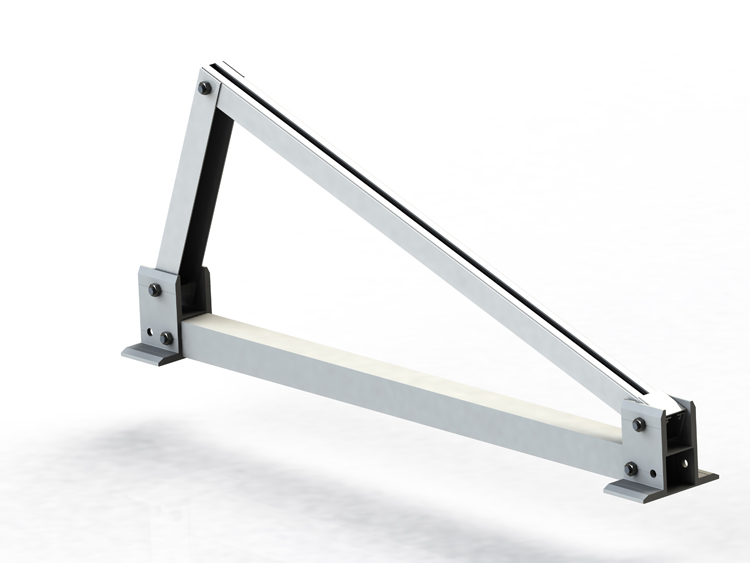

Flat Roof Ballasted Solar Racking
Flat roof ballasted solar racking is a highly engineered solution that secures the array without damaging the flat root. It is compatible with the usual framed modules and typically does not require roof penetrations.
Made of lightweight and strong aluminum construction, the ballasted solution components are pre-assembled and pre-cut to prevent corrosion and save your installation time and labor cost.

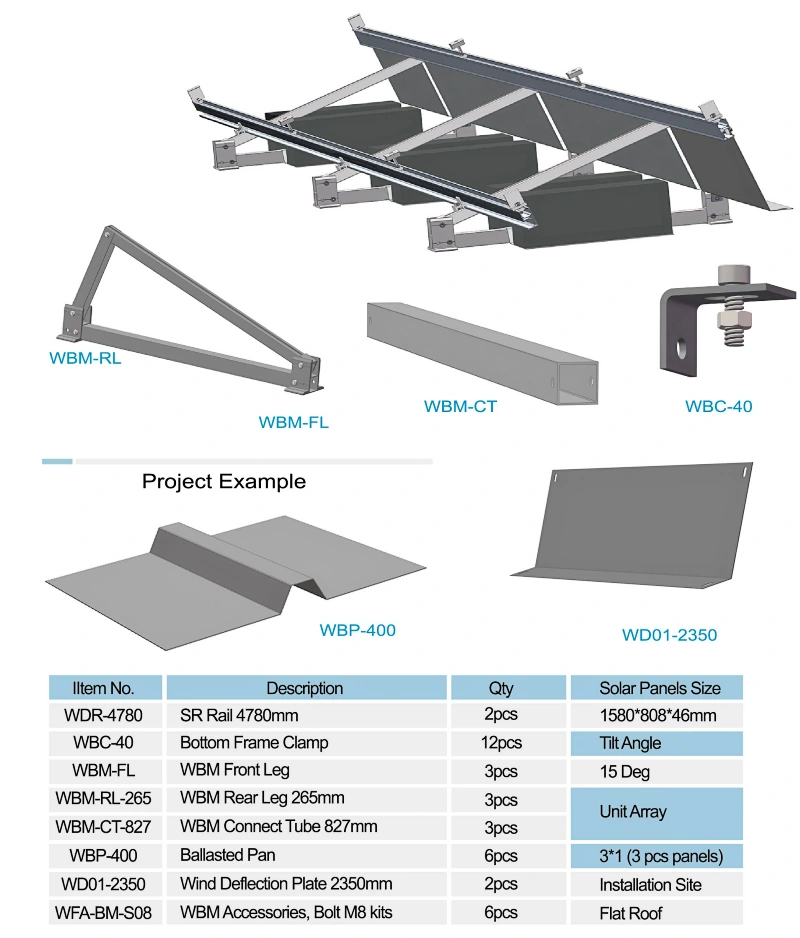

Features of flat roof ballasted solar racking
Easy Installation
D-module can be put into SR-rail from any position.So the parts can be pre-assembled on factory to save your install time on site.
Flexibility and Compatible
SR-Rail and its accessories can be installed with the most solar panels on the different conditions.
Safety and Reliability
The racking systems can stand up to the extreme weather complied with the AS/NZS 1170 and other international structure load standards by skilled engineers. The main support components have also been tested to guarantee its strcuture and load-carrying capacity.
Technical Parameters
| Install site | Low profile roof or open field |
| Tilt Angle | 5deg, 10deg, 15deg, 20deg |
| Building Height | up to 20m |
| Max Wind Speed | up to 60m/s |
| Snow Load | up to <1.4KN/m2 |
| Standards | ASNZS1170 & ISO9001 & SGS & TUV & Other |
| Material | Aluminum alloy & Stainless steel |
| Anti-corrosive | Anodized |
| Warranty | Ten years warranty |
| Duration | More than 20 years |
More Details
For more product details please contact us.
