C-Steel Ground Mount Solar Frames Robust and simple low-level solar PV mounting structures made of galvanized steel tubes can be used together to form modular solar arrays of 2 to 8 panels in a longitudinal manner. Suitable for PV panels up to 1145 mm wide. These can be connected using earthing rods driven directly into the soil, if appropriate, which is much cheaper than using a conventional concrete foundation, although they can also be bolted to a concrete foundation if required. These panels are installed longitudinally in groups of 2 to 8 panels and their low profile is ideal for discreet installation behind buildings or hedges to make them more compliant with planning permissions in sensitive or protected areas. Starting with the main 2-panel frame, you can add up to three 2-panel extension modules in 1 row. Two ground fixing systems are available, either attached to a concrete foundation base or directly to the ground.
C-Steel Ground Mount Solar Frames
Technical Parameters
C-Steel Ground Mount Solar Frames Various pile support types can be selected according to soil conditions. Ground-mounted PV structural sections are available in aluminum or Q235B carbon steel. Customized designs are welcome for ground-mounted solar solutions with adjustable tilt. Ideal for large-scale solar PV projects.

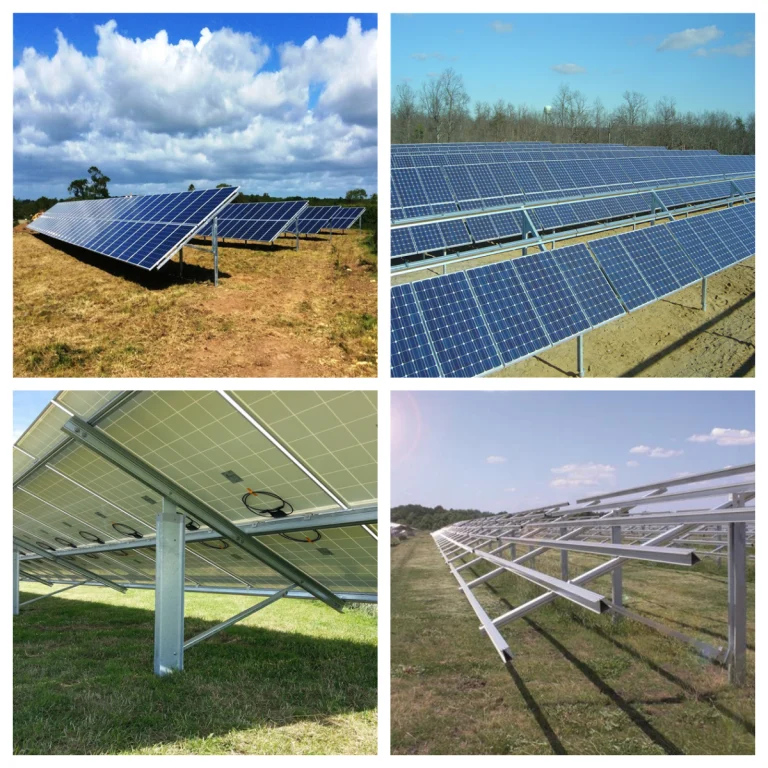

Project Reference
Site and structural design
Ground-mount configuration depends on terrain, geotechnical conditions, module layout, row spacing and local wind and snow actions. Foundation type, member size and corrosion protection should be confirmed from the project inputs. Installation tolerances and drainage routes should be coordinated before construction.
Supply and quality checks
Before production, confirm the approved drawing, quantities, material specification, finish and packaging requirements. Incoming materials, dimensions and assembly interfaces should be checked against the agreed specification. For project orders, sample approval or a compatibility review can help reduce site changes and ensure that the delivered components match the intended installation sequence.
Information needed for a quotation
Provide the site layout, module datasheet, array capacity, terrain and soil information, project location, and wind and snow requirements.
Frequently asked questions
Can ground mount solar frames be customised?
Configuration, dimensions, materials and supplied components can be reviewed against the application and engineering requirements. Share the project inputs so compatibility can be confirmed before ordering.
What documents are available for a project?
Depending on the order scope, Wanhos can provide product data, a coordinated bill of materials, drawings, packing information and installation guidance.
