Pitched Roof Solar Racking System

Pitched Roof Solar Racking System

The Pitched Roof Racking System is designed to be flexible for both commercial and residential rooftop solar systems and is compatible with both framed and frameless module installations. The innovative design of this series of products with SR rails and D-modules makes installation easier and faster, while the pre-fabricated components and customised solutions save your installation time and cost.

Features of Pitched Roof Solar Racking System

We have developed a range of roof hooks to suit every possible situation.
Designed to be highly durable, quick and easy to install, and able to withstand heavy loads, Wanhos roof hooks support solar energy on all common shingle types, with optimized geometry to prevent and bypass broken shingles.
They are also height adjustable and available in high quality aluminum or stainless steel.

  1. Quick, easy and safe installation
  2. Maximize return on investment
  3. Easy to store
  4. Quick and straightforward planning
  5. Compatible in almost all cases with common guide rails on the market
Technical parameters
Installation sitePitched Roof
Tilt AngleFlushed with the roof
Building Height20 m
Max Wind Speed<60m/s
Max Snow Load<1.4KN/m²
StandardAS/NZS 1170 and other international Standards
MaterialHigh Class Aluminum alloy Al6005-T5& Stainless steel SUS304
ColorNatural or Customized
Anticorrosiveanodized aluminum & stainless steel
WarrantyTen years warranty and twenty years service life

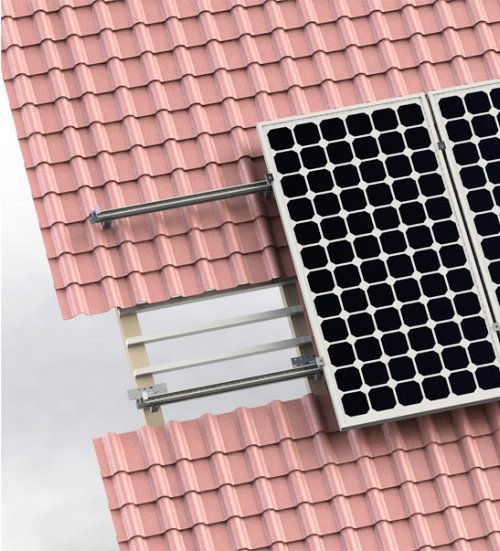

Installation details
pitched roof solar
