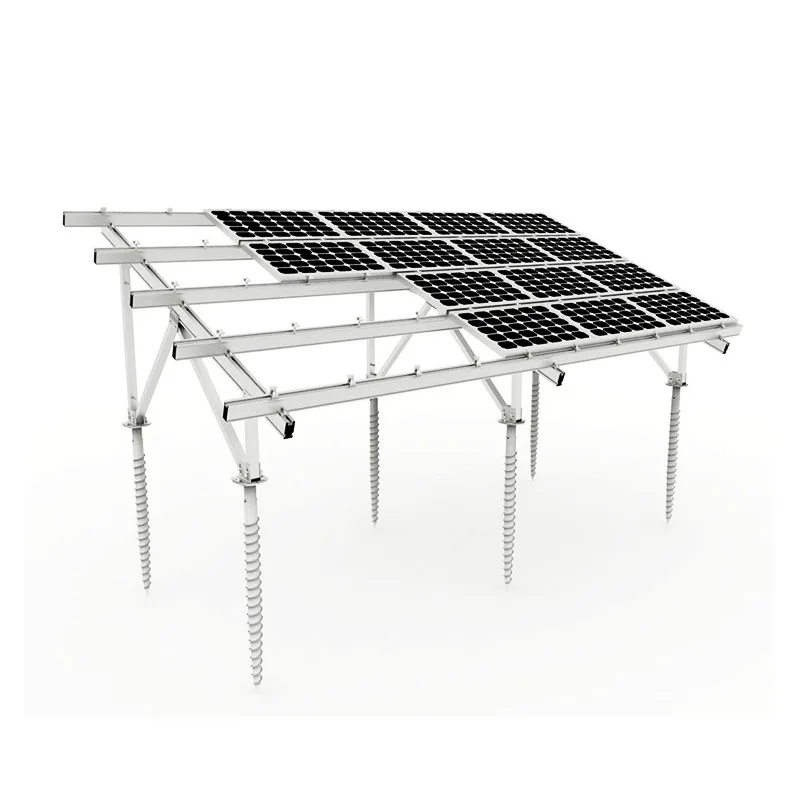

Fixed Tilt Ground Mount
- Installation location: Large site
- Maximum wind speed: 60 m/s max.
- Max. snow load: 1.4KN/m2 max.
- With or without module frame: With or without frame
- Direction of module installation: Vertical
- Main structure material: High-strength aluminum alloy
- Fastener material: Stainless steel
Easy to install. The tilt-in module can be put into the extruded rail from any location and can be pre-assembled with the clamp to minimize the time and cost of installation. The high-integrated support structure just needs a few bolts to fasten together.
Offer unmatched durability: with all structural components comprised of high-class stainless steel, anodized aluminum alloy, and the double anticorrosive finish for the steel pipe and cap, it is designed for twenty years of service life and backed by a ten-year warranty.
Stand up to extreme weather. The Wanhos solar ground mount system is designed to stand up to extreme weather and complies with the AS/NZS 1170 and other international structure load standards by skilled engineers. The main support components also have been tested to guarantee their structure and load-carrying capacity.
Provide broad installation flexibility. These systems accommodate the most commercially available framed solar panels and diverse foundation solutions, and they can scale easily from small to large, multi-megawatt installations.

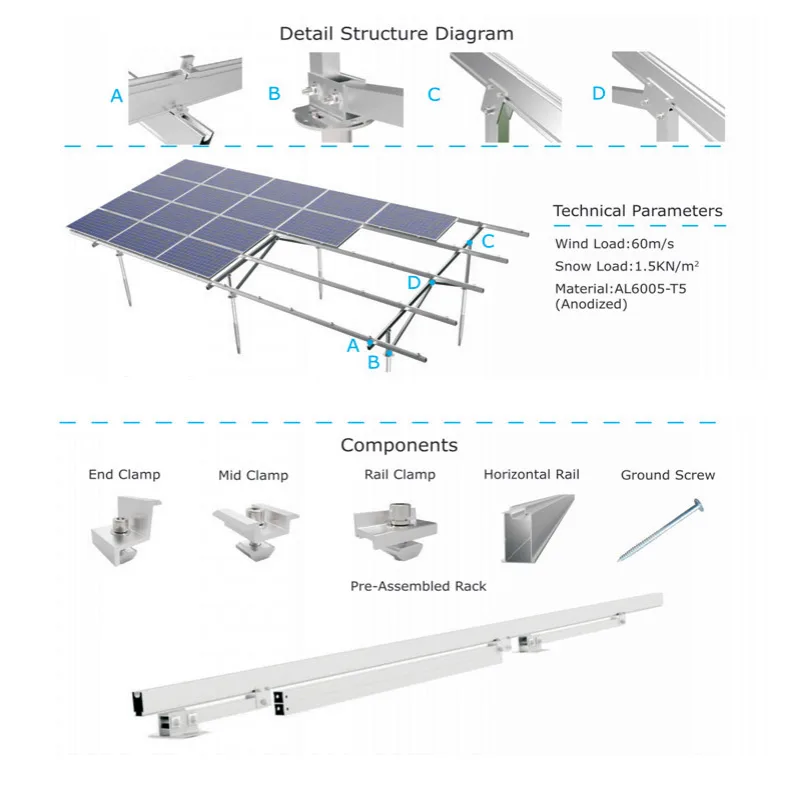

Technical Parameters

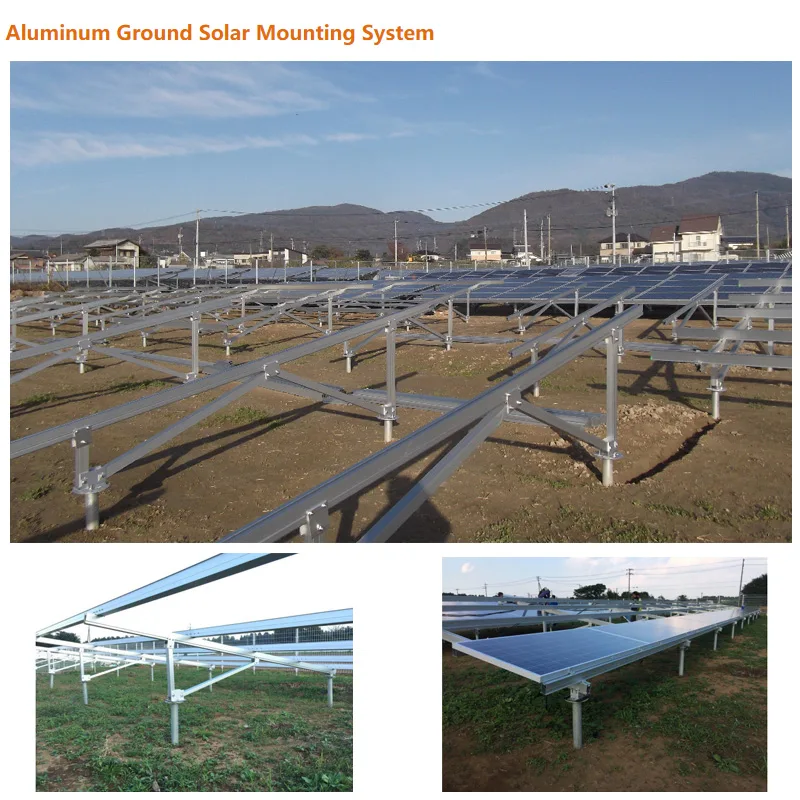

Project Reference
Site and structural design
Ground-mount configuration depends on terrain, geotechnical conditions, module layout, row spacing and local wind and snow actions. Foundation type, member size and corrosion protection should be confirmed from the project inputs. Installation tolerances and drainage routes should be coordinated before construction.
Supply and quality checks
Before production, confirm the approved drawing, quantities, material specification, finish and packaging requirements. Incoming materials, dimensions and assembly interfaces should be checked against the agreed specification. For project orders, sample approval or a compatibility review can help reduce site changes and ensure that the delivered components match the intended installation sequence.
Information needed for a quotation
Provide the site layout, module datasheet, array capacity, terrain and soil information, project location, and wind and snow requirements.
Frequently asked questions
Can fixed tilt ground mount be customised?
Configuration, dimensions, materials and supplied components can be reviewed against the application and engineering requirements. Share the project inputs so compatibility can be confirmed before ordering.
What documents are available for a project?
Depending on the order scope, Wanhos can provide product data, a coordinated bill of materials, drawings, packing information and installation guidance.
