Solar Panel Bracket Spacing: Secrets to 30% More Efficiency
Solar panel bracket spacing might seem like a minor detail, but it directly impacts your system’s energy production, lifespan, and safety. Guesswork with solar panel bracket spacing leads to costly mistakes:
- A 30-50% drop in winter energy production due to shading.
- Costly repairs from wind damage (e.g., $10,000+ for bracket replacement after a storm).
- Accidental panel cracks during maintenance (common when spacing is too tight).
This guide breaks down scientific solar panel bracket spacing calculations and shows how our Angled Solar Panel Mounts simplify optimization—so you get maximum efficiency, guaranteed.
Why Solar Panel Bracket Spacing Matters
1. Shading: The Silent Energy Thief
Tight spacing causes panels to cast shadows on each other during low sun angles (morning, evening, or winter).
- Case Study: A California homeowner installed 1.6m panels with 1m spacing. On the winter solstice (lowest sun), shading started at 9 AM, slashing daily production by 35%.
2. Wind & Structural Stress: A Matter of Survival
- Too tight: Increases wind resistance (risk of bracket collapse in storms).
- Too wide: Causes sagging over time (leading to cracked panels).
3. Maintenance Nightmares
Tight solar panel bracket spacing blocks access for cleaning or repairs. Systems with poor spacing cost 30% more to maintain (e.g., technicians damaging panels while working in cramped spaces).
How to Calculate Solar Panel Bracket Spacing: Formula + Steps
1. Core Formula (For Fixed Brackets):
Minimum Spacing=Panel Length (L)×sin(Installation Angle+Winter Solstice Solar Altitude)
Variables Explained:
- Panel Length (L): Measure the longest edge (our mounts fit any panel size, so compatibility is never an issue).
- Installation Angle: Use our mount’s 10-30° adjustable range to match your latitude (critical for optimal spacing).
- Winter Solstice Solar Altitude: The lowest sun angle of the year.
Example (Beijing, China):
- Panel length = 2m, installation angle = 30° (max of our mount’s range), winter solstice solar altitude = 26.5°.Spacing=2×sin(30°+26.5°)=2×sin(56.5°)≈1.66meters
- For a step-by-step breakdown of this calculation, refer to Wikipedia’s photovoltaic mounting system guide, which outlines industry standards for spacing and tilt angles.
2. Pro Tip: Leverage Our Adjustable Mounts
Our Angled Solar Panel Mounts simplify seasonal adjustments:
- Summer: Tilt to 10° (reduce spacing by 30%, leveraging high sun angles).
- Winter: Tilt to 30° (recalculate spacing with the formula for maximum sun capture).
Solar Panel Bracket Spacing Guides by Scenario

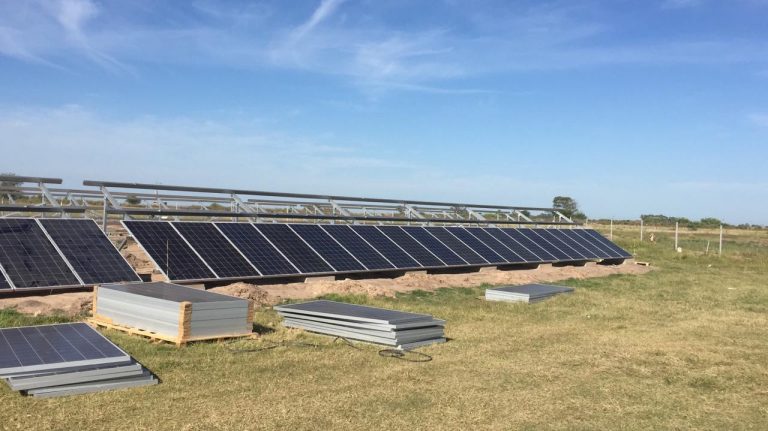

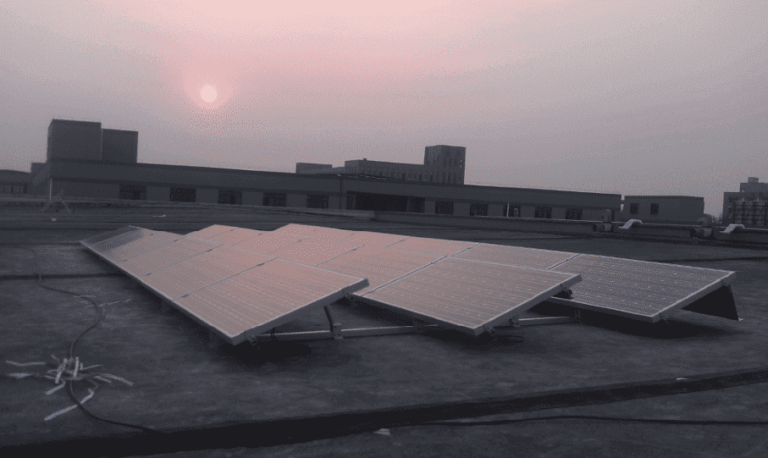

1. Roof & Ground Installations (Flat Roofs/Open Ground)
Our Angled Solar Panel Mounts are optimized for flat roofs and open ground:
- Efficiency: Use the formula to calculate spacing, then rely on the mount’s 10-30° adjustability to fine-tune for seasonal sun changes.
- Durability: Withstand 60 m/s winds (130 mph) and 1.4 kN/m² snow load—tight spacing is safe even in extreme weather.
2. Sloped Terrain Adaptation
For sloped roofs or uneven ground:
- The mount’s customizable inclination (10-30°) adapts to slopes, reducing the need for extra spacing to avoid shading.
Costly Solar Bracket Spacing Errors — And How Our Mounts Prevent Them
Mistake 1: “One Spacing Fits All Seasons”
→ Fix: Our mount’s 10-30° range lets you adapt to seasonal sun angles in 5 minutes (quick-release mechanism).
Mistake 2: Ignoring Wind/Snow Load
→ Fix: Hurricane/snow-prone areas: Our mounts are engineered to handle 60 m/s winds and 1.4 kN/m² snow—no need to widen spacing unnecessarily.
Mistake 3: No Maintenance Access
→ Fix: The mount’s aluminum alloy + 304 stainless steel build resists corrosion, so tight spacing needs less maintenance. Besides, adjustable tilt angles let you access panels easily (no need for walkways).
Why Our Angled Solar Panel Mounts Are the Best for Spacing
Our mounts are designed to solve spacing challenges:
| Feature | Benefit for Your Spacing Design |
|---|---|
| 10-30° Adjustable Tilt | Perfect for seasonal sun changes—no recalculating! |
| 60 m/s Wind Resistance | Tight spacing stays safe in storms. |
| Universal Panel Fit | Works with any panel size—no hardware changes. |
| 25+ Year Lifespan | Long-term durability = fewer replacements. |
| Corrosion-Resistant Build | Ideal for wet/dusty environments (aluminum + 304 stainless steel). |
For example, in hurricane-prone Florida, our mounts let you space panels 10% tighter than competitors—using wind resistance to outperform spacing formulas!
Final Takeaway: Get Spacing Right, Reap Long-Term Rewards
Get 20-50% more energy with smart solar panel bracket spacing. Pair our Angled Solar Panel Mounts with the calculations here, and you’ll reduce maintenance costs significantly—backed by our 10-year warranty.
Ready to optimize? Check out our Angled Solar Panel Mounts product page to get started.
