How to Achieve Safe, Anti-Sliding Solar Mounting on Pitched Tile Roofs
If you’re searching for a safe anti sliding pitched tile roof solar mounting system, you’re likely dealing with a real site challenge: how to keep panels from creeping down a slippery tile surface under wind, thermal movement, and gravity – without damaging the roof. The answer isn’t found in extra clamps alone. It starts with anchoring the structure to the roof framing, not the tiles, and then mechanically locking the modules in place. This article walks you through what matters, from hook design to torque values, so you can select and install a system that stays put for 20+ years.

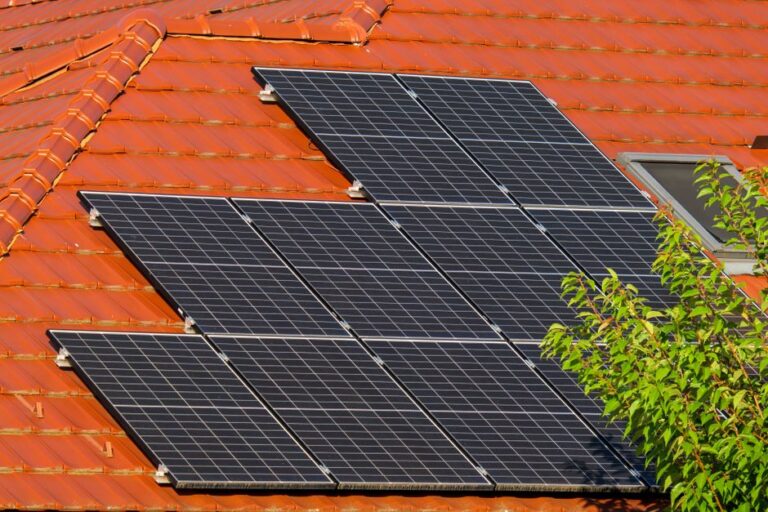

Why Tile Roofs Demand a Different Anti-Sliding Approach
Pitched tile roofs are not flat concrete slabs. Tiles overlap, sit on battens, and can crack under point loads. The surface itself is uneven and often smooth or glazed. If you bolt panels to rails that only press onto tiles – or use tile-only attachments – nothing stops the whole assembly from shifting downhill over time. I’ve seen systems where installers relied on a few hooked brackets gripping the tile’s lower edge, and after two summers the array had moved 15 mm, cutting into cables and twisting rails.
The real risk is not immediate failure but slow migration. Thermal cycling causes expansion and contraction. Wind uplift can lift modules slightly, then drop them a few millimeters further downslope. In coastal or cyclone-prone areas, wind-driven rain accelerates lubricity between tile and bracket pad. So anti-sliding design must create a structural lock, not a friction-based hold.

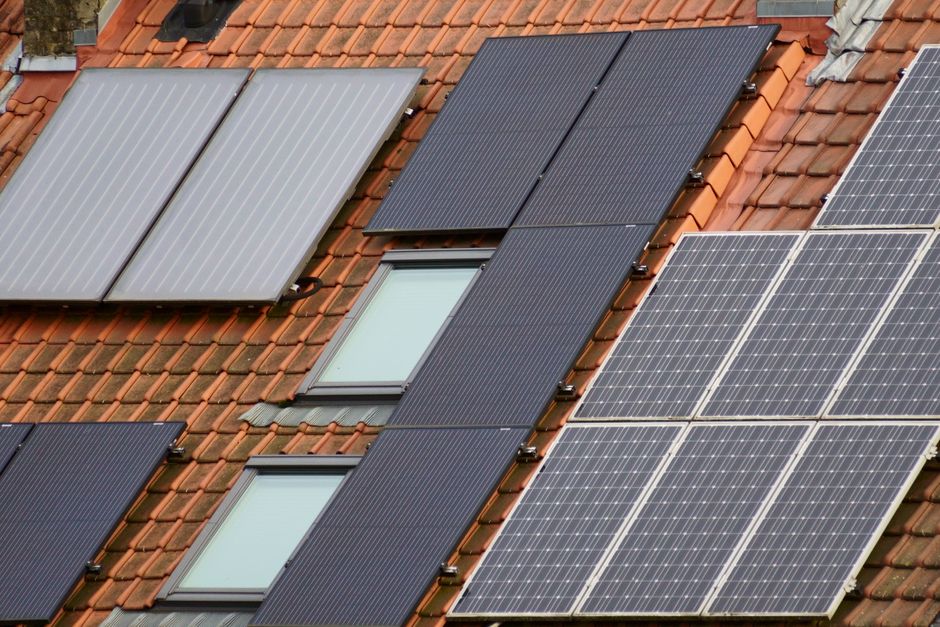

How a Safe Anti-Sliding Mounting System Actually Works
Anchoring Behind the Tile
The most reliable method uses stainless steel roof hooks that pass under the tile and bolt into the roof structure – typically timber rafters or steel purlins. The tile rests back over the hook’s flat base, so the load goes straight to the frame. A good hook has an adjustable height and a shaped plate that doesn’t lift the tile unnaturally. Wanhos tile roof hooks, for example, use SUS304 stainless steel with a slotted base for vertical adjustment, and the profile is kept slim to avoid lifting the tile row above. This arrangement means the hook stays locked even if the tile itself cracks.
Rail-to-Hook Connection That Prevents Downslope Creep
Simply bolting a rail to a vertical hook post is not enough. Under wind suction, the rail can tilt and lose grip. Quality systems use serrated interfaces or locking washers between hook and rail channel. Some pre-assembled solutions include a toothed rail connector that bites into the hook when torqued, creating a mechanical interlock that resists both uplift and sliding.
Module Clamps That Don’t Let Go
Standard aluminum clamps with smooth pads can slip on anodized module frames, especially on steep roofs. An anti-sliding clamp must have a textured or knurled contact surface and a bolt design that maintains consistent clamping force without cracking the frame. Field tip: always torque mid and end clamps to the module manufacturer’s spec – usually 14–18 Nm for M8 bolts – and check after the first few thermal cycles. Some Wanhos clamps include a secondary locking feature, like a captive nut or spring washer, to maintain pre-load over time.
What to Check Before You Select a Tile Roof Mounting System
Procurement managers and EPC teams often ask for “anti-sliding guarantees.” There’s no universal certificate, so you need to evaluate based on project conditions. Here’s what I look at:
- Roof framing compatibility: Is the system engineered for timber rafters, steel C-purlins, or both? Hook base thickness and screw pattern must match.
- Tile profile clearance: Low-profile flat tiles need a shallower hook than high-profile S-tiles. An adjustable hook with 30–60 mm vertical range covers most.
- Wind load data: On steep pitches in gusty regions, uplift forces can exceed 2.5 kPa. The hook-to-rafter connection must be validated for pull-out and shear. Wanhos provides load tables per screw type and rafter material.
- Corrosion protection: Anything touching the roof or in the tile gap should be SUS304 or better. Aluminum rails alone won’t fail from corrosion, but stainless fasteners are critical.
- Installation sequence: Some hooks install before tiles, some after. A design that allows post-install adjustment without removing tiles saves hours.
Single-Stud vs. Double-Stud Tile Hooks: A Quick Comparison
The number of attachment points to the roof structure directly affects stability. Here’s a practical comparison based on my own installation experience and feedback from distribution partners.
| Factor | Single-Stud Tile Hook | Double-Stud Adjustable Hook |
|---|---|---|
| Fixation to Rafter | One lag screw; relies on rafter thickness | Two screws; distributes shear and pull-out load |
| Anti-Rotation Stability | Can twist if under-torqued or on narrow rafter | Much higher resistance to rotation and lateral movement |
| Installation Speed | Faster for simple roofs with wide rafters | Slightly longer per hook but fewer call-backs |
| Cost per Hook | Lower | Moderate increase, often offset by reduced rail bracing |
| Best For | Low-wind zones, shallow pitches (≤20°), solid timber | Steep roofs (≥30°), exposed sites, older timber where splitting risk exists |
I recommend double-stud hooks whenever there’s uncertainty about rafter quality or when local code requires redundancy. The extra few euros per hook are cheaper than a service team re-tightening an array after a storm.
Installation Details That Make or Break Anti-Sliding Performance
Even the best hook won’t prevent sliding if installed incorrectly. Three common mistakes I see on site:
- Not hitting the rafter center. A screw angled off-center can split the rafter or reduce pull-out strength. Pre-drill pilot holes and use a laser to align hook positions.
- Over-torquing the rail bolt. This can deform the aluminum channel and create a hinge under load. Follow the rail manufacturer’s maximum torque, usually 8–10 Nm for M8.
- Ignoring thermal expansion. Rail runs longer than 12 m need expansion joints. A fixed rail without a slip zone can buckle and shift clamps, compromising the anti-sliding path. A simple sliding splice bar solves this.
Engineering Tip: Torque Control on Tile Roofs
On tile roofs, I carry a calibrated torque wrench and check every fifth clamp after the first week of sun exposure. Temperature swings can relax fastener pre-load by 10–15%. Re-torquing while the modules are warm (but not hot) brings the clamp back to spec. This small habit cuts down on micro-slippage complaints significantly.
Maintenance: Keeping the Anti-Sliding System Safe Over Years
Anti-sliding performance isn’t a one-time install feature. It requires periodic checks, especially in harsh environments. For maintenance teams or O&M contractors, focus on three things:
- Visual check for rust stains at hook-tile contact points – may indicate water pooling or incompatible metals.
- Test clamp grip by trying to insert a 0.1 mm feeler gauge between clamp pad and module frame; if it slips, re-torque.
- After storms, inspect rail straightness and any sign of module shifting. A 2 mm movement is not normal.
If you spot cracked tiles around hooks, that’s often a sign the hook base wasn’t seated properly or roof load wasn’t evenly distributed. Replace the tile and reposition the hook on the next maintenance cycle.
Frequently Asked Questions
How does anti-sliding work on a tiled roof without drilling into tiles?
The mounting system bypasses the tiles entirely. Hooks are fixed to the rafters beneath the tile layer. Tiles are only lifted slightly to insert the hook’s flat base; they are not used for structural hold. The anti-sliding effect comes from the rigid connection between rafter, hook, rail, and clamp – not from tile friction.
What is the safest way to mount solar panels on a pitched tile roof?
The safest method uses stainless steel adjustable tile hooks bolted into the roof structure with at least two timber screws per hook (or one hanger bolt with proper embedment), combined with a pre-assembled rail system that locks modules via textured clamps. This setup resists both uplift and downslope sliding under typical wind loads, and minimises tile breakage risk when correctly installed.
Can I use standard rail-clamp systems on tile roofs, or do I need special hooks?
Standard rails and clamps work, but standard roof attachments designed for corrugated metal or flat roofs will not provide the necessary clearance or anchoring depth for tiles. You need tile roof hooks that are shaped to fit under the tile profile and tall enough to position rails above the tile’s high points. Using ill-fitting brackets can crush tiles and create a sliding hazard.
How do I choose the right tile roof hook for my project?
Check three dimensions: tile profile height (flat or S-tile), rafter spacing (to ensure hook reaches the framing), and required rail height above tile. A hook with a slotted vertical adjustment of at least 60 mm covers most Mediterranean flat tiles and European S-tiles. Also, verify the base thickness and screw hole pattern match your timber or steel purlin size. Wanhos technical team typically asks for a tile profile sketch and a roof photo before recommending a hook model.
What maintenance is needed to ensure the solar mounting remains anti-sliding over time?
Annual visual inspection of clamp tightness and rail alignment is sufficient for most sites. In coastal zones, check for galvanic corrosion between stainless hooks and aluminum rails every two years. After major wind events, verify that modules have not moved relative to the rails. Re-torque clamps if any gap appears.
Getting the Right Anti-Sliding System for Your Project
There is no universal “anti-sliding” certification, so the selection should always tie back to your specific roof structure, tile type, and local wind code. I’ve seen too many projects where the mounting system was chosen on price alone, only to trigger expensive re-tightening visits or – worse – cracked tiles and water ingress.
When you’re sourcing safe anti sliding pitched tile roof solar mounting systems, look for manufacturers who provide per-hook load test reports, offer stainless steel 304 or 316 hooks with pre-load locking features, and can supply a complete kit (hooks, rails, clamps, and roof flashing) designed to work together. Wanhos, for example, ships tile roof systems with pre-assembled clamps and serrated rail connectors that help installers achieve consistent anti-sliding performance out of the box, reducing adjustment time on steep roofs.
If you’re unsure about which hook profile fits your project’s tile, or you need a wind-load verification for a specific rafter spacing, it’s better to get that clarity before ordering. Mistakes at the mounting stage are the costliest to fix later on a finished roof.
Before you specify your next tile roof solar mounting system, contact Wanhos with your tile type, roof pitch, rafter dimensions, and local wind zone. We’ll help you match the right hook and rail combination so your array stays exactly where you install it.
